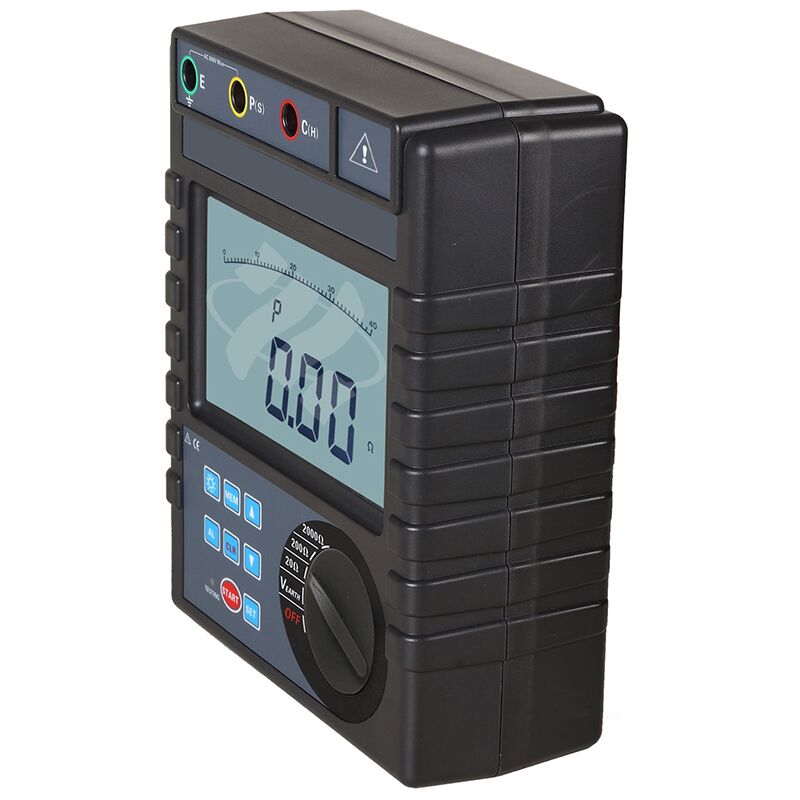

Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705

Name: Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: Xhdj705
Price: 440.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an Shaanxi Çin
Marka adı:	XZH TEST
Sertifika:	ISO CE
Model numarası:	Xhdj705

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an Shaanxi Çin

Marka adı:

XZH TEST

Sertifika:

ISO CE

Model numarası:

Xhdj705

Çekirdek işlevler:

Çeşitli test taleplerini karşılamak için toprak direnci ölçümü, toprak voltajı ölçümü ve düşük değer

Güç Kaynağı Yapılandırması:

Uzun süreli saha çalışmasını desteklemek için 300 saatlik süper uzun sürekli bekleme süresine sahip,

Ölçüm Şemaları:

3 telli ölçümü, 2 telli ölçümü destekler ve test sonuçlarının ortalama değerini, maksimum değerini v

Toprak Direnci Test Prensibi:

Maksimum ölçüm akımı 3mA ve çalışma frekansı 820Hz olan nominal akım değişken kutup yöntemini benims

Toprak Gerilimi Test Modu:

Ortalama değer düzeltme modunu benimser; Net ve sezgisel okuma için 4 haneli büyük boy LCD ekranla d

Toprak Direnci Aralığı ve Doğruluğu:

Ölçüm aralığı 0,01Ω~2000Ω, ölçüm doğruluğu ±%1 okuma ±3 hane, çözünürlük oranı 0,01Ω

Vurgulamak:

High Light

Vurgulamak:

Liquid Crystal Display Ground Resistance Tester

Portable Earth Resistance Tester

High Precision Ground Tester

Trading Information

Min sipariş miktarı:

1 TAKIM

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

5-8 iş günü

Ödeme koşulları:

T/T

Yetenek temini:

3000 birim/yıl

Ürün Tanımı

Portable Ground Resistance Tester with Liquid Crystal Display for High Precision Earth Resistance Measurement

Product Overview

The XHDJ705 Digital Earth Resistance Tester is a professional measuring instrument independently designed and manufactured for field-based earth resistance detection. It boasts wide applicability and can be used to measure the earth resistance of various facilities including power grids, meteorological equipment, oilfield installations, construction projects, lightning protection systems and industrial electrical devices.

Performance Features

Engineered with advanced digital circuit and microprocessor control technologies, this instrument supports both 3-wire and 2-wire standard measurement methods for earth resistance. It features a proprietary line resistance calibration function that eliminates measurement errors caused by wire resistance, coupled with exceptional anti-electromagnetic interference performance and strong environmental adaptability to harsh working conditions. These core advantages ensure the instrument maintains high measurement accuracy, outstanding stability and reliable operation throughout long-term service.

Technical Parameters

Core Functions	Capable of earth resistance measurement, earth voltage measurement and low-value resistance measurement to meet diversified testing demands
Power Supply Configuration	Powered by DC 9V (6 pieces of 1.5V R14S batteries), with a super-long continuous standby time of 300 hours to support long-term field work
Measurement Schemes	Supports 3-wire measurement, 2-wire measurement, and displays average value, maximum value and minimum value of test results
Earth Resistance Testing Principle	Adopts rated current variable pole method, with maximum measurement current of 3mA and working frequency of 820Hz
Earth Voltage Testing Mode	Measuring range 0.01Ω～2000Ω, measurement accuracy ±1% reading ±3 digits, resolution ratio 0.01Ω
Earth Resistance Range & Accuracy	Measuring range AC 0～600V, measurement accuracy ±1% reading ±3 digits, resolution ratio 1V
Earth Voltage Range & Accuracy	Earth voltage measurement: 3 times per second; Earth resistance measurement: 5 seconds per measurement
Measurement Efficiency	Equipped with RS232 interface to upload stored data to computer for archiving and printing; supports 400 groups of data storage, and the flashing "FULL" icon prompts that the memory is full
Data Communication & Storage	Operating temperature range -10℃～40℃, relative humidity below 80%RH (no condensation)
Operating Environment Requirements

1. Robust Brand Strength:** Leveraging the extensive scientific research resources of universities in Xi'an, Xi'an Xuzhihui Electromechanical has dedicated years to deep specialization in the field of power testing equipment. Integrating R&D, manufacturing, sales, and service, our products have undergone rigorous market scrutiny and enjoy a reputation for reliability that is truly worthy of trust.
2. Industry-Leading Technology:** The XHDJ705 incorporates advanced digital circuitry and sophisticated anti-interference technology. Compared to traditional grounding testers, it offers faster testing speeds, greater data accuracy, and superior stability, perfectly meeting the intelligent and automated demands of modern power testing applications.

3. Exceptional Cost-Effectiveness:** Operating on a direct-from-manufacturer sales model eliminates intermediary channels, allowing us to offer more accessible pricing without compromising on quality. By striking an optimal balance between product performance and procurement costs, it stands as the preferred choice for enterprises and testing institutions seeking to reduce expenses and enhance operational efficiency.

4. Comprehensive Service Assurance:** From product selection and operational training to after-sales maintenance and technical upgrades, Xi'an Xuzhihui provides a seamless, one-stop service experience—ensuring that our customers can purchase with confidence and operate with complete peace of mind.
