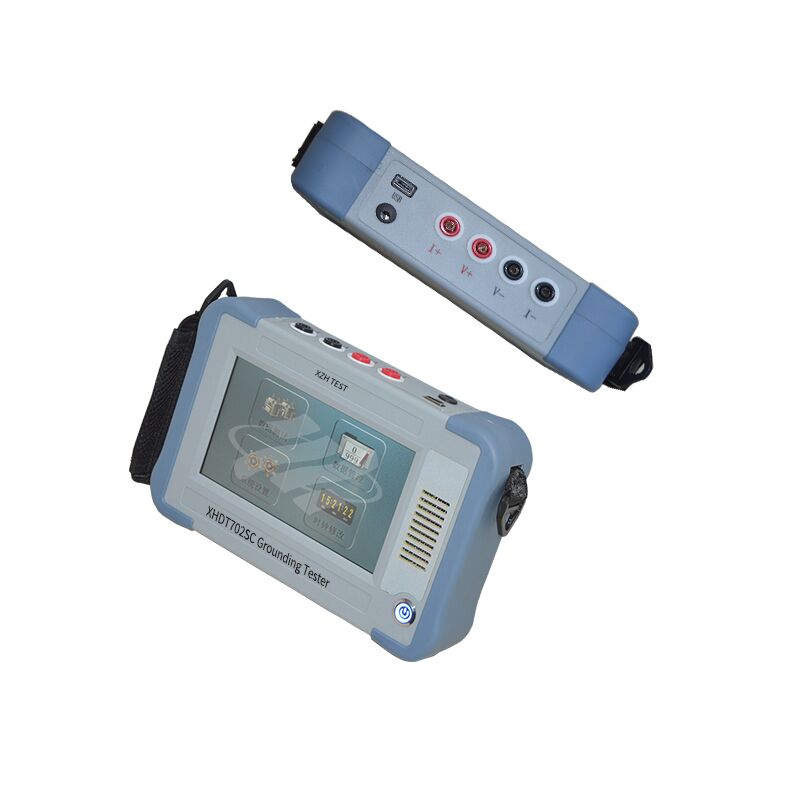

Portable Digital Grounding Tester Simple to Operate

Name: Portable Digital Grounding Tester Simple to Operate
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDT702SC
Price: 440.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an Shaanxi Çin
Marka adı:	XZH TEST
Sertifika:	ISO CE
Model numarası:	XHDT702SC

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an Shaanxi Çin

Marka adı:

XZH TEST

Sertifika:

ISO CE

Model numarası:

XHDT702SC

Ölçüm Aralığı:

10A: 1mΩ~2Ω, 1A: 2Ω~20Ω

Vurgulamak:

High Light

Vurgulamak:

Portable Grounding Tester

Digital Ground Tester

Simple to Operate Earth Resistance Tester

Trading Information

Min sipariş miktarı:

1 TAKIM

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

5-8 iş günü

Ödeme koşulları:

T/T

Yetenek temini:

3000 birim/yıl

Ürün Tanımı

Product Overview

XHDT702SC Grounding Downlead Continuity Tester is used to measure the continuity resistance between the grounding downleads of substation power equipment and the ground grid or adjacent equipment.

Performance Features

High-speed single-chip microcomputer control ensures high automation and easy operation, suitable for on-site quick testing.
Power supply technology supports multiple current gears and a wide measurement range, adapting to different on-site testing scenarios.
Intelligent power management helps save energy and maintain stable instrument performance.
320X240 dot-matrix 65K true-color LCD with ultra-small pixels ensures clear data display in strong light.
Power-off storage function can save 1000 groups of test data, available for query anytime.
Built-in lithium battery and charger make on-site operation more convenient without external power supply.

Portable Digital Grounding Tester Simple to Operate 0

Technical Specifications

★ Output Current: 10A, 1A Auto-switching

★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

★ Resolution: 0.1μΩ

★ Accuracy: ±(0.2% of reading + 2 digits)

★ Power Supply: AC 220V±10% 50Hz±1Hz

★ Ambient Temperature: -10～50℃

★ Ambient Humidity: ≤90%RH
