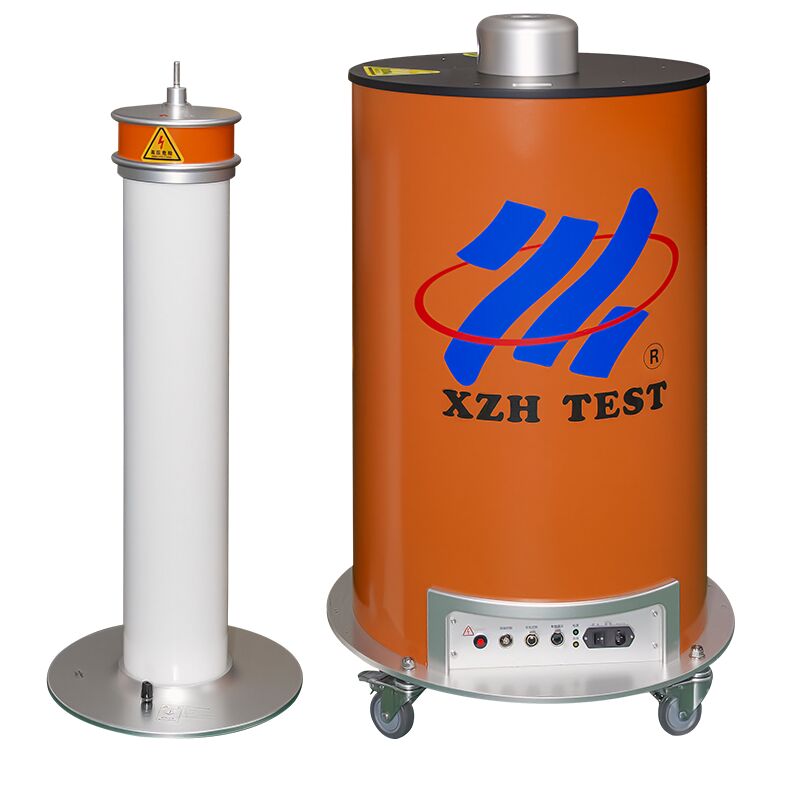

LCR Damped Oscillation Principle Cable Fault Locator
LCR Damped Oscillation Principle Cable Fault Locator
  • LCR Damped Oscillation Principle Cable Fault Locator

LCR Damped Oscillation Principle Cable Fault Locator

Ürün Ayrıntıları:
Menşe yeri: Xi'an Shaanxi Çin
Marka adı: XZH TEST
Sertifika: ISO CE
Model numarası: XHOW560
Ayrıntılı Bilgiler
Menşe yeri:
Xi'an Shaanxi Çin
Marka adı:
XZH TEST
Sertifika:
ISO CE
Model numarası:
XHOW560
Vurgulamak:

High Light

Vurgulamak:

LCR damped oscillation principle Cable Fault Locator

,

Comprehensive Diagnostic System Cable Insulation

,

Cable Insulation Diagnostic System

Trading Information
Min sipariş miktarı:
1 takım
Ambalaj bilgileri:
Ahşap ambalaj
Teslim süresi:
5-8 iş günü
Ödeme koşulları:
T/T
Yetenek temini:
3000 birim/yıl
Ürün Tanımı
XHOW560
Cable Insulation Comprehensive Diagnostic System, based on the LCR damped oscillation principle, conducts overall assessment and analysis of cable insulation status after completing DC cable charging.
Performance characteristics
The XHOW560 cable insulation comprehensive diagnostic system uses a built-in high-voltage reactor and a high-voltage real-time solid-state switch to generate a damped oscillating voltage wave with the test cable. This applies a sinusoidal voltage wave, close to the power frequency, to the test cable, exciting discharge signals at potential defects and allowing for the location and assessment of the cable insulation condition. Based on VLF ultra-low frequency voltage detection of cable insulation dielectric loss, it provides a comprehensive evaluation and analysis of the cable insulation condition.

Technical Specifications

★ DAC Output: 30/60kV 20-500Hz

★ VLF Output: 30/60kV 0.05, 0.1, 0.5Hz

★ DC Output: 0-30/60kV

★ Partial Discharge Test: 5pC-10nC Resolution: 1pC

★ Partial Discharge Bandwidth: 100-500kHz

★ Partial Discharge Positioning: 100kHz-20MHz

★ Resolution: 0.01%

LCR Damped Oscillation Principle Cable Fault Locator 0
