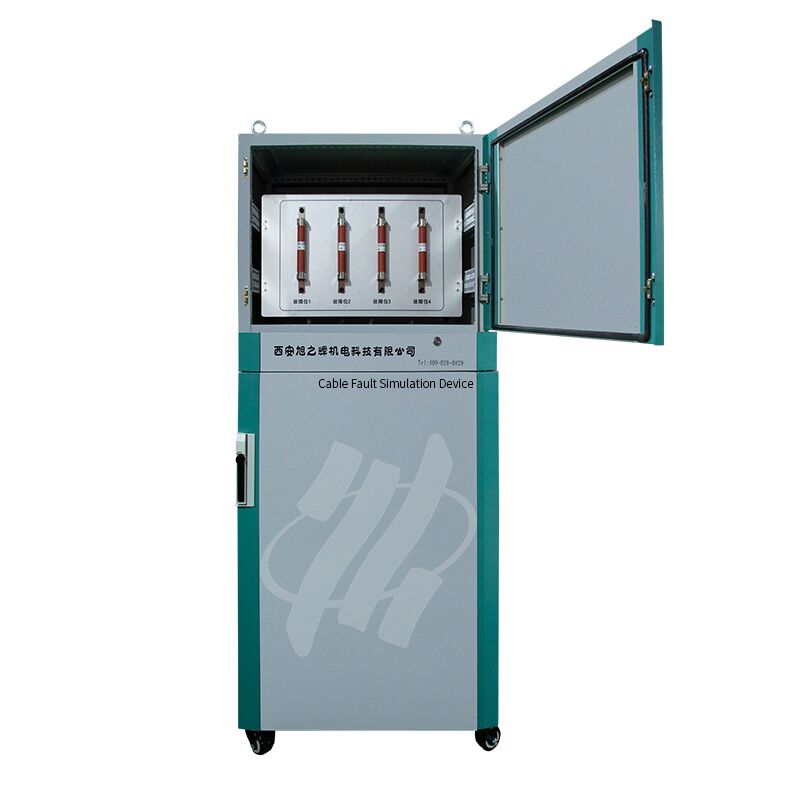

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display

Name: Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHFZ510-B2
Price: 1,050.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an Shaanxi
Marka adı:	XZH TEST
Sertifika:	ISO
Model numarası:	XHFZ510-B2

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an Shaanxi

Marka adı:

XZH TEST

Sertifika:

ISO

Model numarası:

XHFZ510-B2

Köprü oranı:

1/50, 1/20, 1/10, 1/5, 1/4, 1/2, doğruluk: ±%0,25

Ölçülecek maksimum direnç:

10KΩ

Ölçülecek maksimum voltaj:

5kVDC

Vurgulamak:

High Light

Vurgulamak:

Simulation Device Cable Fault Locator

Acoustic-Magnetic Synchronization Cable Fault Tester

Digital Display Cable Fault Simulation Device

Trading Information

Min sipariş miktarı:

1 takım

Ambalaj bilgileri:

Ahşap ambalaj

Teslim süresi:

5-8 iş günü

Ödeme koşulları:

T/T

Yetenek temini:

3000 birim/yıl

Ürün Tanımı

XHFZ510-B2

Product Overview

As urbanization speeds up, growing electricity demand drives the shift from overhead lines to cables. Training cable fault detection staff remains a long-standing issue. Our independently developed electrical test simulation training system—distilled from decades of power cable experience—simulates all cable faults, ensuring effective training.

Application

The Electrical Testing Simulation Training System is primarily used for training power cable testing personnel in various industries. The main industries involved include:
Power Industry: Various power plants, substations, power supply bureaus, etc.
Manufacturing Industry: Power cable manufacturers, cable fault detector manufacturers, etc.
Smelting Industry: Self-owned power plants, power plants, etc.
Education Industry: Laboratories, training bases, etc.
Research Institutes: Laboratories, training bases, etc.
Service Industry: Property management, service companies, logistics departments, etc.

Panel Introduction

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 0

Test Ends:

1) Main Insulation 1: Cable core end at the T-joint;

2) Test Ground 1: Cable shield end at the T-joint;

3) Main Insulation 2: Cable core end;

4) Test Ground 2: Cable shield end;

5) Grounding Post: Instrument grounding point, for safety protection.

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 1
