Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System

Name: Professional Series Resonance Experimental Apparatus | HV Insulation Test for Power System
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-135/108
Price: 7,970.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an, Shaanxi, Çin
Marka adı:	XZH TEST
Sertifika:	ISO,CE
Model numarası:	XHBP-135/108

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an, Shaanxi, Çin

Marka adı:

XZH TEST

Sertifika:

ISO,CE

Model numarası:

XHBP-135/108

Nominal çıkış voltajı:

Maksimum 500kV (AC RMS)

Çıkış Frekansı:

20 ila 300 Hz

Rezonans gerilimi dalga formu:

Saf sinüs dalgası, distorsiyon oranı <%1,0

Test Kapasitesi:

1000kVA maksimum

Tam güçte sürekli çalışma:

60 dakika

Vurgulamak:

High Light

Vurgulamak:

HV insulation test apparatus

Resonance experimental power tester

AC DC hipot test equipment

Trading Information

Min sipariş miktarı:

1 adet

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

8-10 gün

Ödeme koşulları:

T/T

Yetenek temini:

2000 birim/yıl

Ürün Tanımı

Product Overview

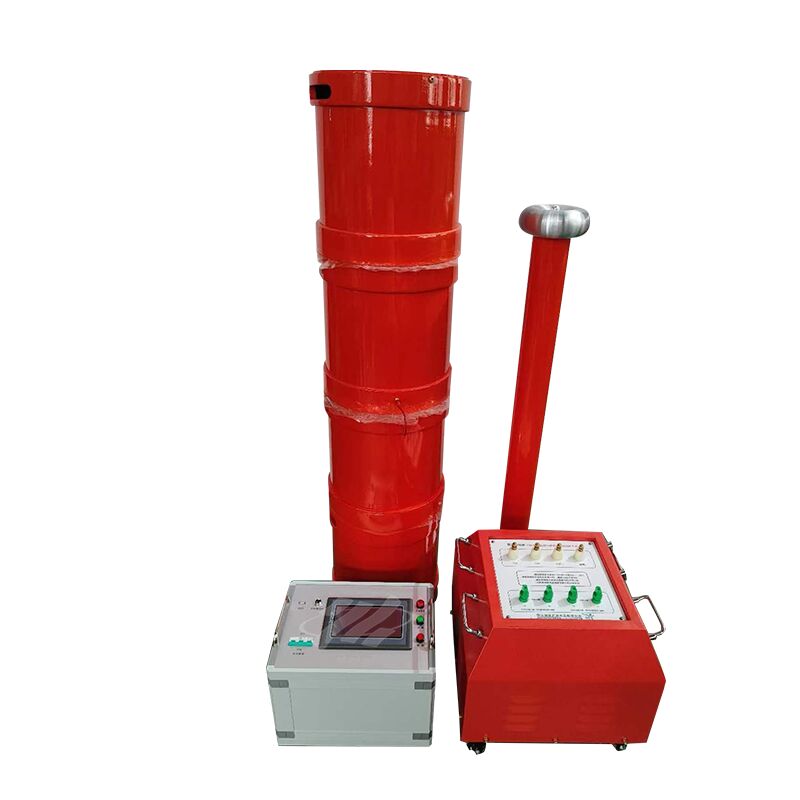

XHBP series variable frequency resonant test device comprises variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider as main parts. A rectifier silicon stack connected after the capacitive voltage divider enables DC withstand voltage testing of equipment.

Performance Features

Compact and lightweight reactors for the same voltage and capacity rating.
Low temperature rise under rated load.
Dry-type epoxy casting for high mechanical strength and good electrical insulation.
Variable frequency control power supply with large capacity margin, powerful protection, high-quality output waveform and stable performance.
Easy operation with multiple working modes.
Convenient on-site power access via 220V or 380V single-phase power.

Technical Parameters

Rated output voltage: 500kV max (AC RMS)
Output frequency: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, distortion rate <1.0%
Test capacity: 1000kVA max
Full-power continuous operation: 60 minutes
Quality factor: 30 to 90
Frequency regulation: 0.1Hz sensitivity, <0.05% instability
Working power: 380/220V±15%, 50Hz±5%
