Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions

Name: Automatic Tuning Series Resonance Experimental Apparatus | Multiple Protection Functions
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHYB-10/100
Price: 7,970.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an, Shaanxi, Çin
Marka adı:	XZH TEST
Sertifika:	ISO,CE
Model numarası:	XHYB-10/100

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an, Shaanxi, Çin

Marka adı:

XZH TEST

Sertifika:

ISO,CE

Model numarası:

XHYB-10/100

Vurgulamak:

High Light

Vurgulamak:

Automatic tuning resonance tester

Series resonance apparatus with protection

AC DC hipot tester

Trading Information

Min sipariş miktarı:

1 adet

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

8-10 gün

Ödeme koşulları:

T/T

Yetenek temini:

2000 birim/yıl

Ürün Tanımı

Product Overview

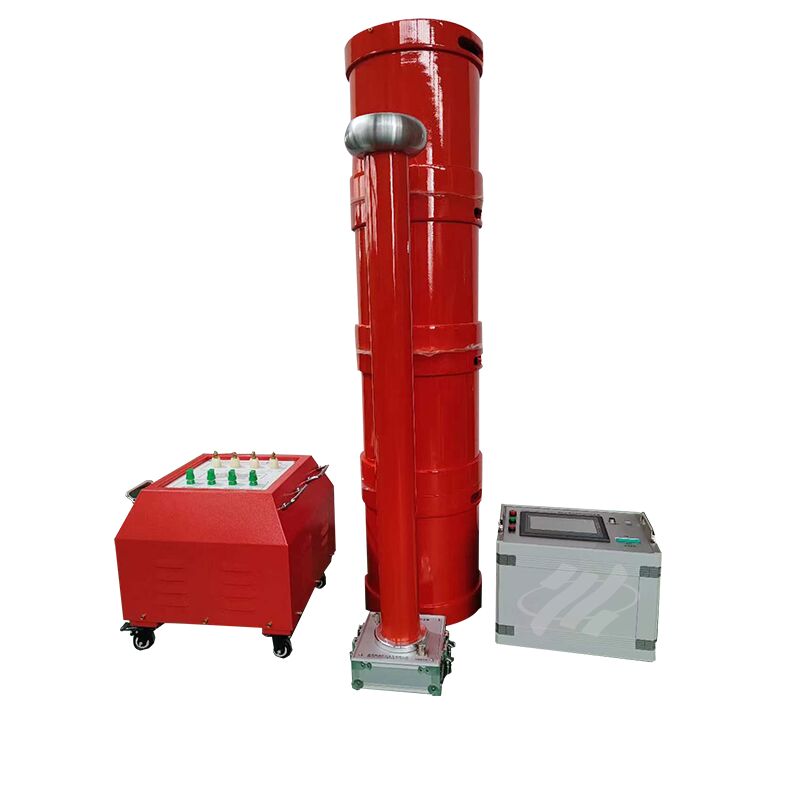

XHBP Series Variable Frequency Resonant Test Device is mainly made up of variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. By connecting a rectifier silicon stack behind the capacitive voltage divider, the device is capable of performing DC withstand voltage tests for various electrical equipment.

Performance Highlights

Reactors of the same voltage class and capacity: smaller volume, lighter weight, easy for transportation and on-site installation.
Low temperature rise during rated load operation, enhancing the service life of components.
Dry epoxy casting structure ensures high mechanical strength and excellent electrical insulation, suitable for harsh working environments.
Variable frequency control power supply features large capacity margin, strong protective system, perfect output waveform and stable working performance.
Multiple working modes available, realizing simple and efficient operation.
220V/380V single-phase power supply, convenient for on-site power connection in different regions.

Technical Parameters

Rated Output Voltage: ≤500kV (AC RMS)
Output Frequency: 20～300Hz
Resonant Voltage Waveform: Pure Sine Wave, Distortion <1.0%
Test Capacity: ≤1000kVA
Continuous Working Time (Full Power): 60min
Quality Factor: 30～90
Frequency Regulation: Sensitivity 0.1Hz, Instability <0.05%
Working Power Supply: 380/220V±15%/50Hz±5%
