CE Certified Series Resonance Experimental Apparatus | Customizable for HV Test

Name: CE Certified Series Resonance Experimental Apparatus | Customizable for HV Test
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-135/108
Price: 7,970.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an, Shaanxi, Çin
Marka adı:	XZH TEST
Sertifika:	ISO,CE
Model numarası:	XHBP-135/108

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an, Shaanxi, Çin

Marka adı:

XZH TEST

Sertifika:

ISO,CE

Model numarası:

XHBP-135/108

Nominal çıkış voltajı:

500kV ve altı (AC ortalama karekök değeri)

Çalışma gücü kaynağı:

380/220V AC±15%, 50Hz±5%

Frekans düzenleme performansı:

Hassasiyet 0,1Hz, kararsızlık hatası <%0,05

Kalite Faktörü (Q):

30~90

Sürekli çalışma süresi:

Tam güç çıkışı durumunda 60 dakika

Nominal test kapasitesi:

1000kVA ve altı

Vurgulamak:

High Light

Vurgulamak:

CE certified resonance test apparatus

Customizable HV resonance tester

AC DC hipot resonance equipment

Trading Information

Min sipariş miktarı:

1 adet

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

8-10 gün

Ödeme koşulları:

T/T

Yetenek temini:

2000 birim/yıl

Ürün Tanımı

Product Description

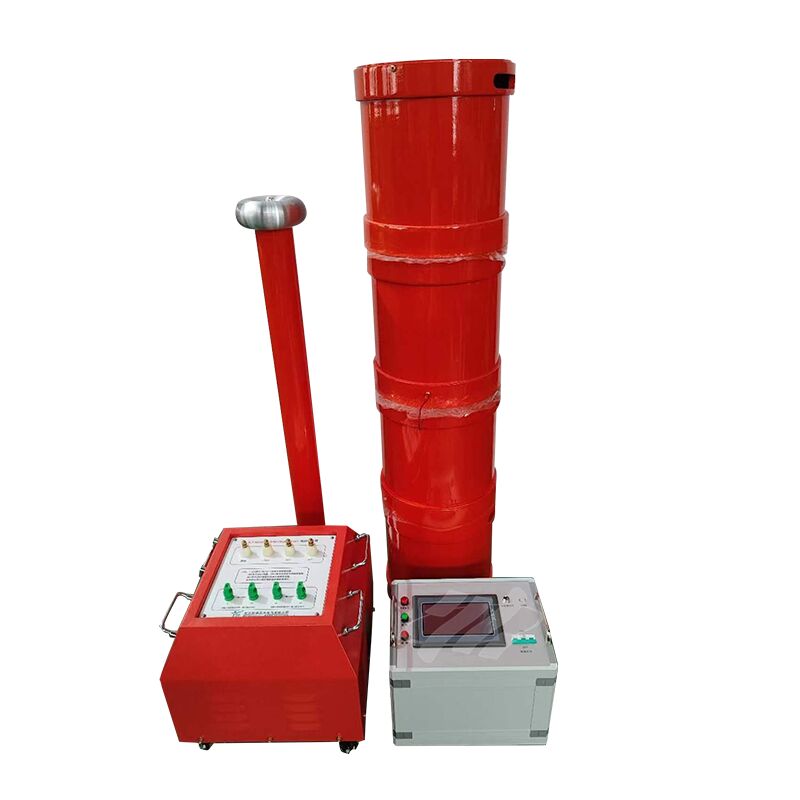

XHBP series variable frequency resonant test device is a modular testing equipment, the main components of which include variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. For the implementation of DC withstand voltage test on tested equipment, a rectifier silicon stack shall be connected to the output terminal of the capacitive voltage divider.

Performance Characteristics

For reactors with identical voltage rating and nominal capacity, the physical dimension is compact and the net weight is reduced compared with conventional models.
Temperature rise value is controlled at a low level when the device operates under rated load condition.
The reactor is manufactured with dry-type epoxy casting technology, which ensures high mechanical strength and meets the requirements of high-level electrical insulation.
The variable frequency control power supply is designed with large capacity margin, complete protection functions, low-distortion output waveform and high operational stability.
The device is configured with multiple operating modes, which simplifies the test operation process for operators.
The power supply input is 220V or 380V single-phase AC, which is compatible with most on-site power supply conditions for easy power taking.

Technical Specifications

Rated output voltage: 500kV and lower (AC root mean square value)
Output frequency: 20～300Hz (adjustable)
Resonant voltage waveform: Pure sine wave, waveform distortion factor ≤1.0%
Nominal test capacity: 1000kVA and lower
Continuous working duration: 60 minutes under full power output status
Quality factor (Q): 30～90
Frequency regulation performance: Sensitivity 0.1Hz, instability error <0.05%
Working power supply: 380/220V AC±15%, 50Hz±5%
