Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision

Name: Lightweight Series Resonance Experimental Apparatus | Low Power Consumption High Precision
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHBP-44/44
Price: 7,970.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	Xi'an, Shaanxi, Çin
Marka adı:	XZH TEST
Sertifika:	ISO,CE
Model numarası:	XHBP-44/44

Ayrıntılı Bilgiler

Menşe yeri:

Xi'an, Shaanxi, Çin

Marka adı:

XZH TEST

Sertifika:

ISO,CE

Model numarası:

XHBP-44/44

Geniş voltaj girişi:

380/220V±15%/50Hz±5%

Hassas frekans düzenlemesi:

0,1Hz hassasiyet, <%0,05 kararsızlık

Kalite faktörü aralığı:

30~90

Tam güçte sürekli çalışma:

60 dakika

Maksimum test kapasitesi:

1000kva

Rezonans gerilimi dalga formu:

Saf sinüs dalgası, dalga biçimi bozulması <%1,0

Vurgulamak:

High Light

Vurgulamak:

lightweight resonance experimental apparatus

low power consumption hipot tester

high precision AC DC tester

Trading Information

Min sipariş miktarı:

1 adet

Fiyat:

Anlaşılabilir

Ambalaj bilgileri:

ahşap ambalaj

Teslim süresi:

8-10 gün

Ödeme koşulları:

T/T

Yetenek temini:

2000 birim/yıl

Ürün Tanımı

Product Introduction

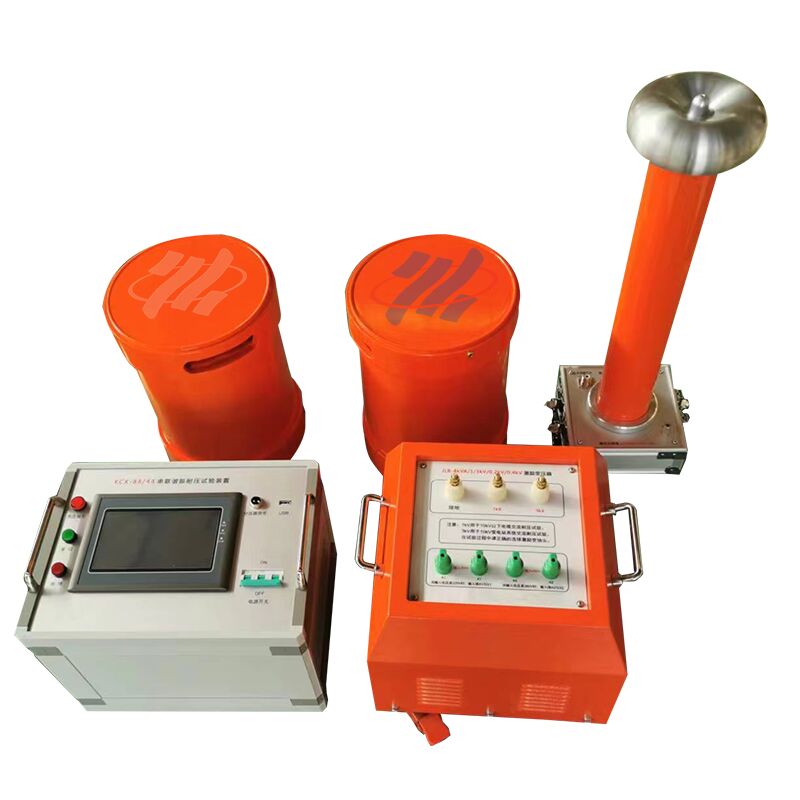

The XHBP series variable frequency resonant test device is an integrated testing solution consisting of core components: variable frequency control power supply, excitation transformer, reactor and capacitive voltage divider. Its flexible design allows the connection of a rectifier silicon stack post capacitive voltage divider, enabling seamless DC withstand voltage testing for various equipment.

Outstanding Performance Traits

Space-saving & portable reactors: Same voltage class and capacity with reduced volume and weight for easy handling.
Low heat generation under rated load, ensuring long-term stable operation.
Advanced dry-type epoxy casting process delivers exceptional mechanical strength and reliable electrical insulation.
High-performance VF control power supply: Abundant capacity margin, comprehensive protection functions, perfect sine wave output and consistent stability.
User-friendly operation with multiple customizable working modes to fit diverse testing demands.
Convenient on-site power supply via universal 220V or 380V single-phase power input.

Core Technical Parameters

Rated output voltage: Up to 500kV (AC RMS)
Output frequency range: 20 to 300Hz
Resonant voltage waveform: Pure sine wave, waveform distortion <1.0%
Max test capacity: 1000kVA
Full-power continuous operation: 60 minutes
Quality factor range: 30～90
Precision frequency regulation: 0.1Hz sensitivity, <0.05% instability
Wide voltage input: 380/220V±15%/50Hz±5%
