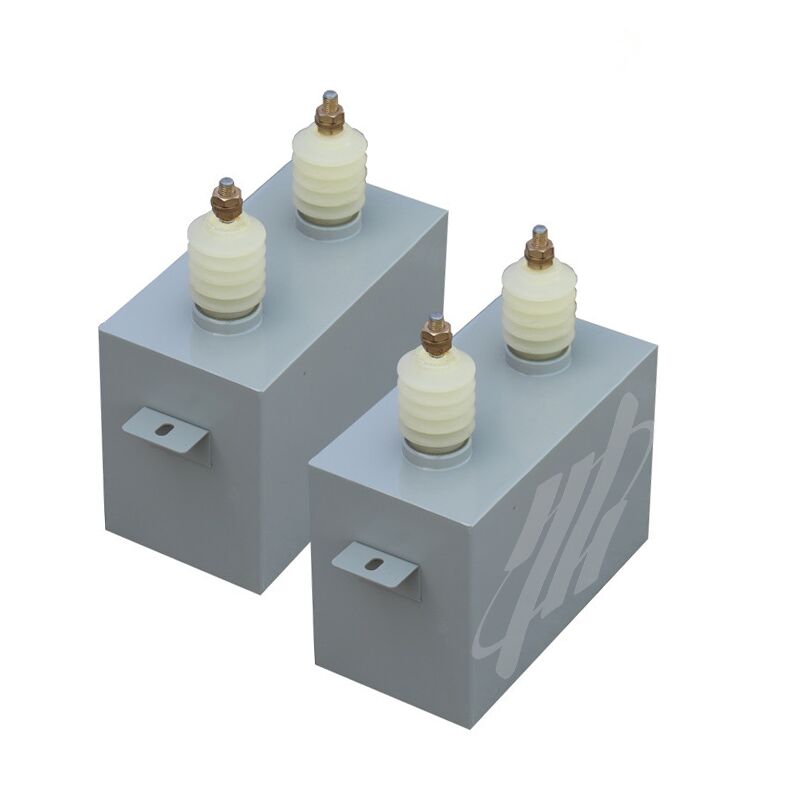

30kv 4UF Precision Pulse Energy Capacitor

Name: 30kv 4UF Precision Pulse Energy Capacitor
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHCC-4/30
Price: 1,050.00 USD
Availability: InStock

Ürün Ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	XZH Test
Sertifika:	CE/ISO
Model numarası:	XHCC-4/30

Ayrıntılı Bilgiler

Menşe yeri:

ÇİN

Marka adı:

XZH Test

Sertifika:

CE/ISO

Model numarası:

XHCC-4/30

Vurgulamak:

High Light

Vurgulamak:

30kv pulse energy capacitor

4UF precision capacitor

cable fault locator capacitor

Trading Information

Min sipariş miktarı:

1 birim

Ambalaj bilgileri:

Ahşap kutu

Teslim süresi:

5-8 iş günü

Ödeme koşulları:

T/T

Yetenek temini:

2000 birim/yıl

Ürün Tanımı

XHCC-4/30

Model NO.

XHCC-4/30

Rated Capacity

4UF

Transport Package

Wooden Case

Trademark

XZH TEST

Product Description

In the world of electrical components, the pulse capacitor stands out. Imagine it as a tiny energy bank. It patiently absorbs the charging energy from a small - power supply over a certain period. When the need arises, it springs into action, releasing all that stored energy in the blink of an eye. This quick release creates a powerful impact current and a surge of energy. It's a key player in high - voltage impulse discharge tests, high - energy physics experiments, oscillation circuits, and geological exploration.

Ambient temperature: -20~+50ºC;
Altitude: ≤2000 meters, if it is greater than 2000 meters, it will be explained separately;
Capacitance error: ±5%;
Voltage resistance between poles: 1.1~1.5Un 2s Pole to shell: 2Un 60s;
Insulation resistance: RC≥7500MΩ·uF;
Loss: ≤0.01 (1kHz).

Precautions and Common Faults
1. It is strictly forbidden to hit and collided the high-voltage pulse capacitor, otherwise the internal film will be easily damaged.
2. When using Pulse Energy Storage Capacitors, please read the instructions and the content of the capacitor label to prevent overvoltage use.
3. During use, pay attention to the withstand voltage and safety distance of the connecting wire.
4. After the test is completed, the high voltage end must be fully discharged.
5. During use, if there is abnormal sound inside the capacitor, it is recommended to stop using it, as there is a risk of internal insulation damage.
6. If there are bulges or bulges on the capacitor shell, it is recommended to stop using it, as there is a risk of deterioration of the internal material and insulation reduction.
